-30D SmartGrid Wifi COP6 EER4 A+++ Low Noise 12kw10 80Dg75 Hybrid Heating Radiator Heated Air Cooling DHW Warmepumpe R290 Heizung Warmwasser Pompe A Chaleur Monoblock DC Inverter Air Source Water Heater Pump Geyser
-30D 12kw10 80Dg75 Hybrid Heating Radiator Heated Air Cooling DHW Warmepumpe R290 Monoblock DC Inverter Air Source Water Heater Pump Geyser
ADC-10(HC9)
- 10~12 kw heating/cooling capacity
- 5 years warranty
- high SCOP 5.1
- SG ready function + Wifi App
- Energy class of 35℃/55℃: A+++ / A+++
- Noise in 1M ≤ 52dB
- Application for remote control on the pump for Android or iOS
- Water outlet temperature up to 35-60-75-80 degrees
- R290 (high performance and low environmental impact)
- Low Temperature Working Ability, exceeding -30 degree air ambient temperature
- House Heating in Winter, Air Chilling in Summer & Domestic Hot Water 4-season Supply
Quote Now
Product Features of -30D 12kw10 80Dg75 Hybrid Heating Radiator Heated Air Cooling DHW Warmepumpe R290 Monoblock DC Inverter Air Source Water Heater Pump Geyser
- Top SCOP, Panasonic/Highly DC Inverter Dual Rotary compressor and ECO R290 refrigerant gas for max heat capacity for less refrigeration, large volume of latent heat from the air via Windowed-fin evaporator in coldest season.
- Frequency conversion technology, based on the principle of proportional relationship between the motor speed and the input frequency of the working power supply: n = 60 f(1-s)/p and changing the motor speed by changing the working power frequency of the motor, it adopts AC-DC-AC power conversion technology, relying on our powerful control system with PWM generation ability, integrate V/F, vector control (VC) and direct torque control (DTC) to achieve the control method of variable frequency PID calculus, mainly drive variable frequency by way of PWM synthesis drive, fully integrate power, electronics, microcomputer control and other technologies.
- PUNP Operate System, ultra-intelligent, especially superior heat dissipation circuit board design, longer service, over 3 time of other brand’s, simple click and fully play the characteristics of DC inverter frequency conversion system to achieve overlocking performance.
- Multi-speed mute fan motor, ROHS Aero-fluidics fan blades, ultra-low noise, durable & reliable, constant max air flow to satisfy heat supply.
- SANHUA Electronic Expansion Valve, SANHUA 4-way valve, & other World-famous brand components ensure heat pump water heater/chiller to complete domestic hot water heated/chilled for daily usage, house heating in winter, air chilling via fan coil or 4-season domestic hot water.
- High-tech shock-absorption all copper construction piping, high-accurate completely automatic silver welding, with copper painting spray covering, easy maintenance, highly anti-corrosion and avoid gas leakage.
- High-density protective jacket for minimum heat lost, aviation class insulation foam with outstanding sound absorption.
- Black & gray, 2 color, classic European outlook forming, fashion taste, never out of time.
- Portable compact, back wire & water outlet design, saving room for installation & operation.
Product Parameter
Parameter of -30D 12kw10 80Dg75 Hybrid Heating Radiator Heated Air Cooling DHW Warmepumpe R290 Monoblock DC Inverter Air Source Water Heater Pump Geyser
| Monoblock （All-in-One） DC Inverter Heat Pump (heating/cooling & hot water, -30℃) | ||||||
| Item No. | #ADC-08(HC9) | #ADC-10(HC9) | #ADC-16(HC9) | #ADC-20(HC9) | ||
| HP | 2HP | 3HP | 5HP | 6HP | ||
| Power Supply | 220-240V/50-60Hz/1ph | 380-415V/50-60Hz/3ph | ||||
| Heating Condition： Ambient Temp. +7℃/+6℃(WB/DB), Water Temp. +30℃/+35℃(In/Out). | ||||||
| Heating Capacity Rang | kW | 9.02 | 12.02 | 14.03 | 16.05 | |
| COP | 4.85 | 4.73 | 4.49 | 4.5 | ||
| Heating Condition： Ambient Temp. +2℃/+1℃(WB/DB), Water Temp. +30℃/+35℃(In/Out). | ||||||
| Heating Capacity Rang | kW | 8.22 | 10.95 | 12.78 | 14.62 | |
| COP | 3.89 | 3.67 | 3.7 | 3.71 | ||
| Heating Condition： Ambient Temp. +7℃/+6℃(WB/DB), Water Temp. +47℃/+55℃(In/Out). | ||||||
| Heating Capacity Rang | kW | 7.53 | 10.03 | 11.05 | 12.35 | |
| COP | 3.22 | 3.12 | 3.27 | 3.32 | ||
| Hot Water Condition: Ambient Temp. +20℃/+15℃ (DB/WB), Water Temp. +15℃/+55℃ (In/Out). | ||||||
| Heating Capacity Rang | kW | 8.27 | 11.02 | 12.03 | 16.15 | |
| COP | 4.92 | 4.93 | 4.95 | 4.95 | ||
| SCOP | at 35℃ water outlet | 5.24 | 5.46 | 5.39 | 5.12 | |
| at 55℃ water outlet | 3.76 | 3.98 | 3.97 | 3.93 | ||
| ErP Level | at 35℃ water outlet | A+++ | A+++ | A+++ | A+++ | |
| at 55℃ water outlet | A++ | A+++ | A+++ | A+++ | ||
| Heating operation range | Ambient | °C | -30~25 | |||
| Heating side | °C | 18~60~75~80 | ||||
| Domestic hot water operation range | Ambient | °C | -30 ~ 43 | |||
| Water side | °C | 25~75~80 | ||||
| Chilling Condition： Ambient Temp.+35℃/+30℃ (DB/WB), Water Temp. +23℃/+18℃ (In/Out). | ||||||
| Chilling capacity | kW | 9.01 | 11.6 | 12.1 | 13.45 | |
| EER | 4.08 | 3.97 | 3.92 | 3.8 | ||
| Chilling Condition： Ambient Temp.+35℃/+30℃ (DB/WB), Water Temp. +12℃/+7℃ (In/Out). | ||||||
| Chilling capacity | kW | 8.87 | 10.6 | 12.03 | 13.13 | |
| EER | 3.25 | 3.15 | 3.08 | 3.05 | ||
| Chilling operation range | Ambient | °C | 10~43 | |||
| Water side | °C | 7~22 | ||||
| Rated water flow rate | m³/h | 1.4 | 1.8 | 2.7 | 3.6 | |
| Rated pressure drop | kPa | 18 | 20 | 22 | 24 | |
| Max. working pressure | Refrigerant | Bar | 44 | 44 | 44 | 44 |
| Water | Bar | 7 | 7 | 7 | 7 | |
| CO2 equivalent | T | 0.0033 | 0.0036 | 0.0036 | 0.0036 | |
| WIFI | YES, APP | |||||
| Smart-Grid Operate System | YES, SG-ready certificates. | |||||
| Controller | PUNP, Micro processor based digital wire controller, LCD Touch Screen | |||||
| External cabinet | Galvanized steel with powder coating | |||||
| Compressor | Type | Panasonice/HIGHLY Dual Rotary | ||||
| Refrigerant | R290 / 1100g | R290 / 1200g | R290 / 1200g | R290 / 1200g | ||
| Water heat exchanger | SUS 316 Brazed plate heat exchanger | |||||
| Water pump | DC type, DAB/AWMT | |||||
| 3-Way valve | DANFOSS | |||||
| Pipe E-heater | YES | |||||
| Water Pipe | Inlet&Outlet | DN | 25 | 25 | 25 | 25 |
| N W/G W | kg | 80/90 | 85/95 | 120/130 | 140/150 | |
| Noise in 1MTR | dB(A) | ≤50 | ≤52 | ≤56 | ≤58 | |
| Noise in 1MTR in NIGHTMODE | dB(A) | ≤36 | ≤38 | ≤41 | ≤42 | |
| Noise in 3MTR | dB(A) | ≤40 | ≤42 | ≤46 | ≤48 | |
| Noise in 3MTR in NIGHTMODE | dB(A) | ≤29 | ≤31 | ≤34 | ≤35 | |
| Noise in 5MTR | dB(A) | ≤33 | ≤35 | ≤39 | ≤41 | |
| Noise in 3MTR in NIGHTMODE | dB(A) | ≤26 | ≤27 | ≤30 | ≤31 | |
| Unit size | mm | 1076*478*803 | 1076*478*803 | 1076*478*1334 | 1076*478*1334 | |
| Packaging size | mm | 1176*578*950 | 1176*578*950 | 1176*578*1484 | 1076*578*1484 | |
| Loading | 20’/40’/40HQ | sets | 24/48/48 | 24/48/48 | 23/48/52 | 23/48/52 |
| The data is tested based on EN14511 & EN14825. | ||||||

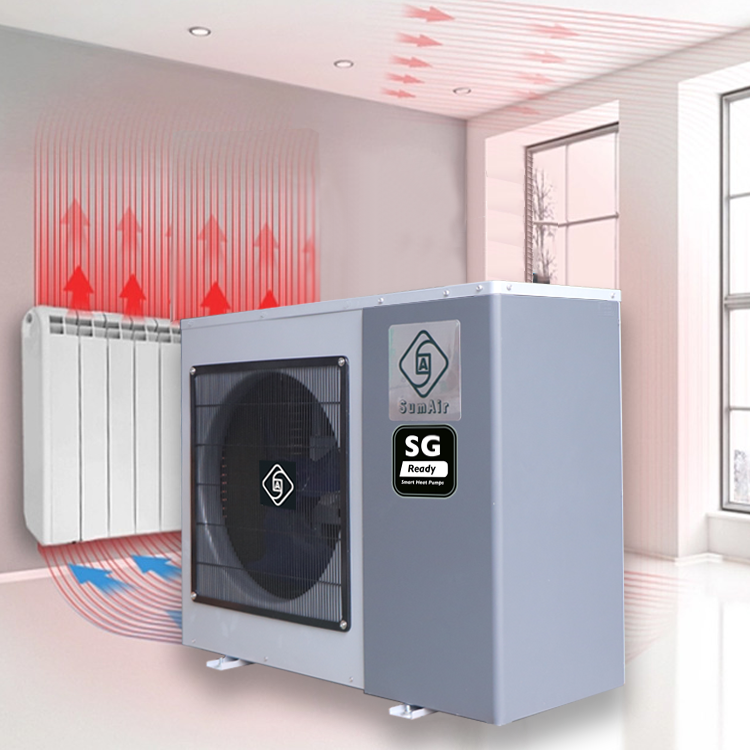

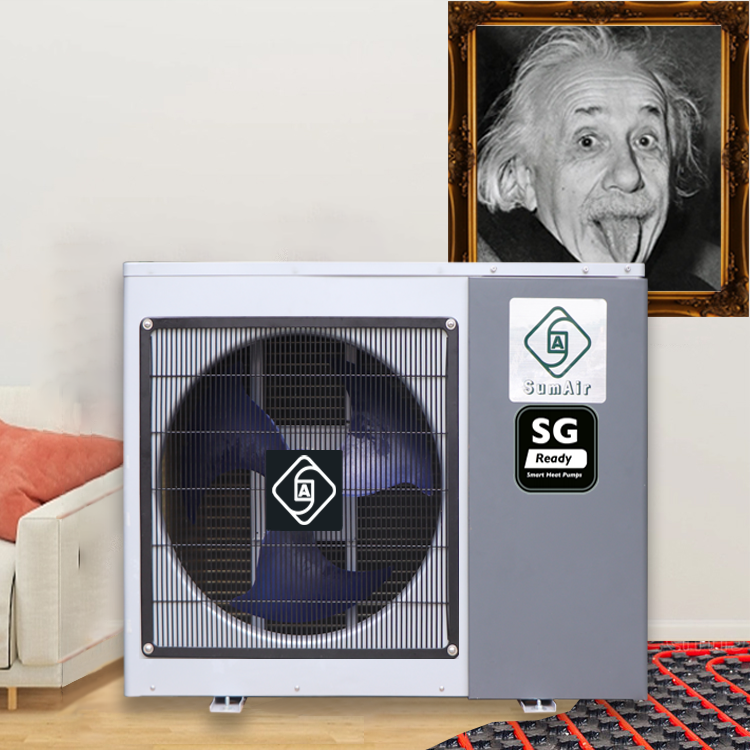

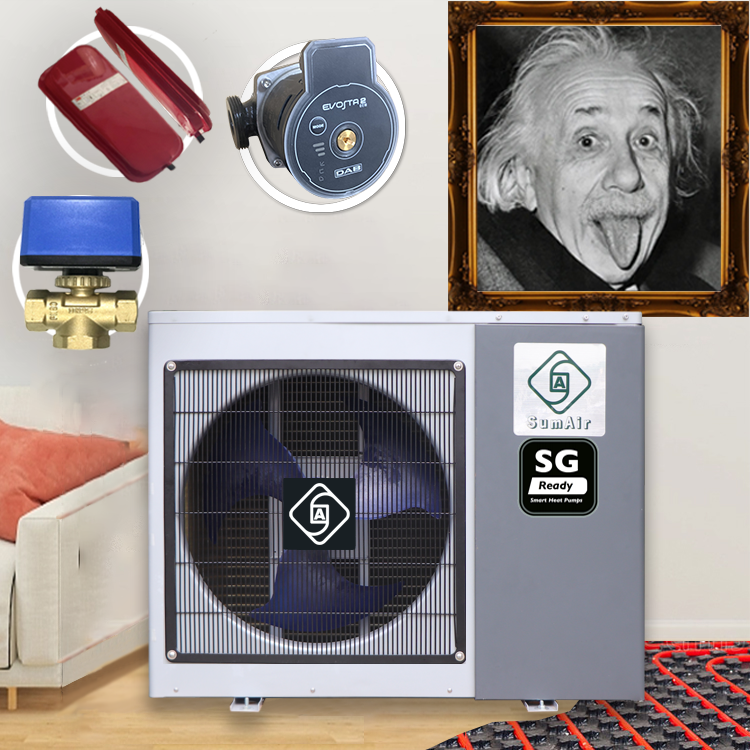

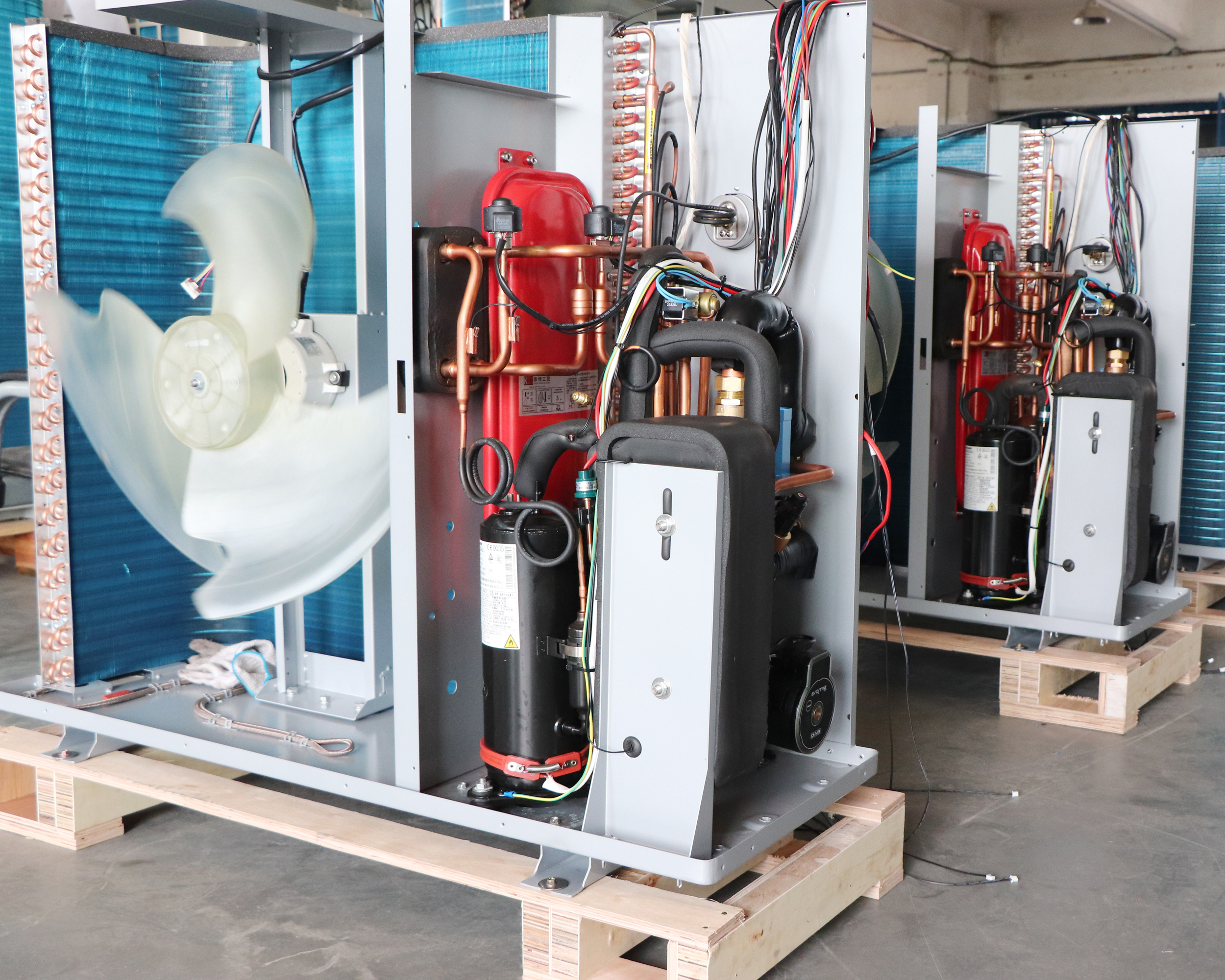

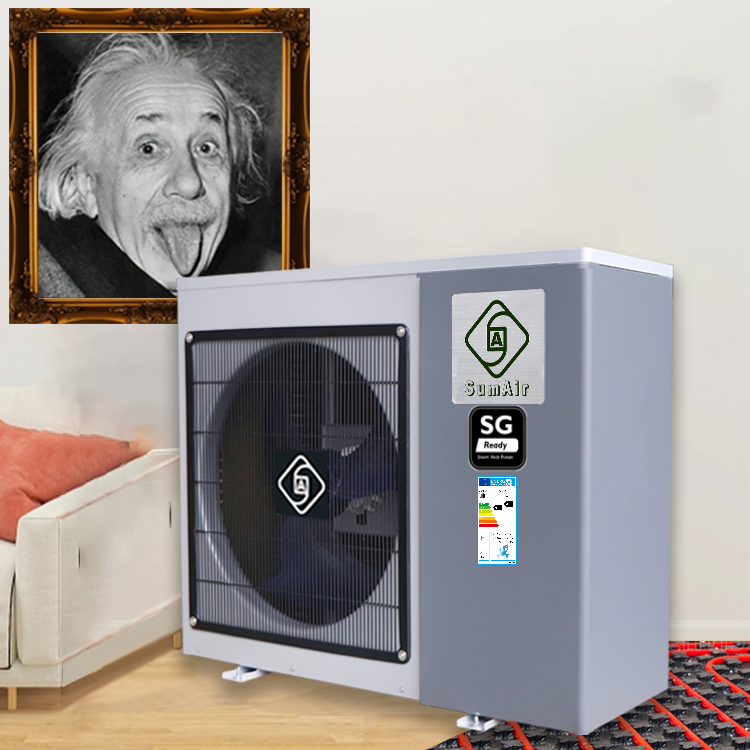

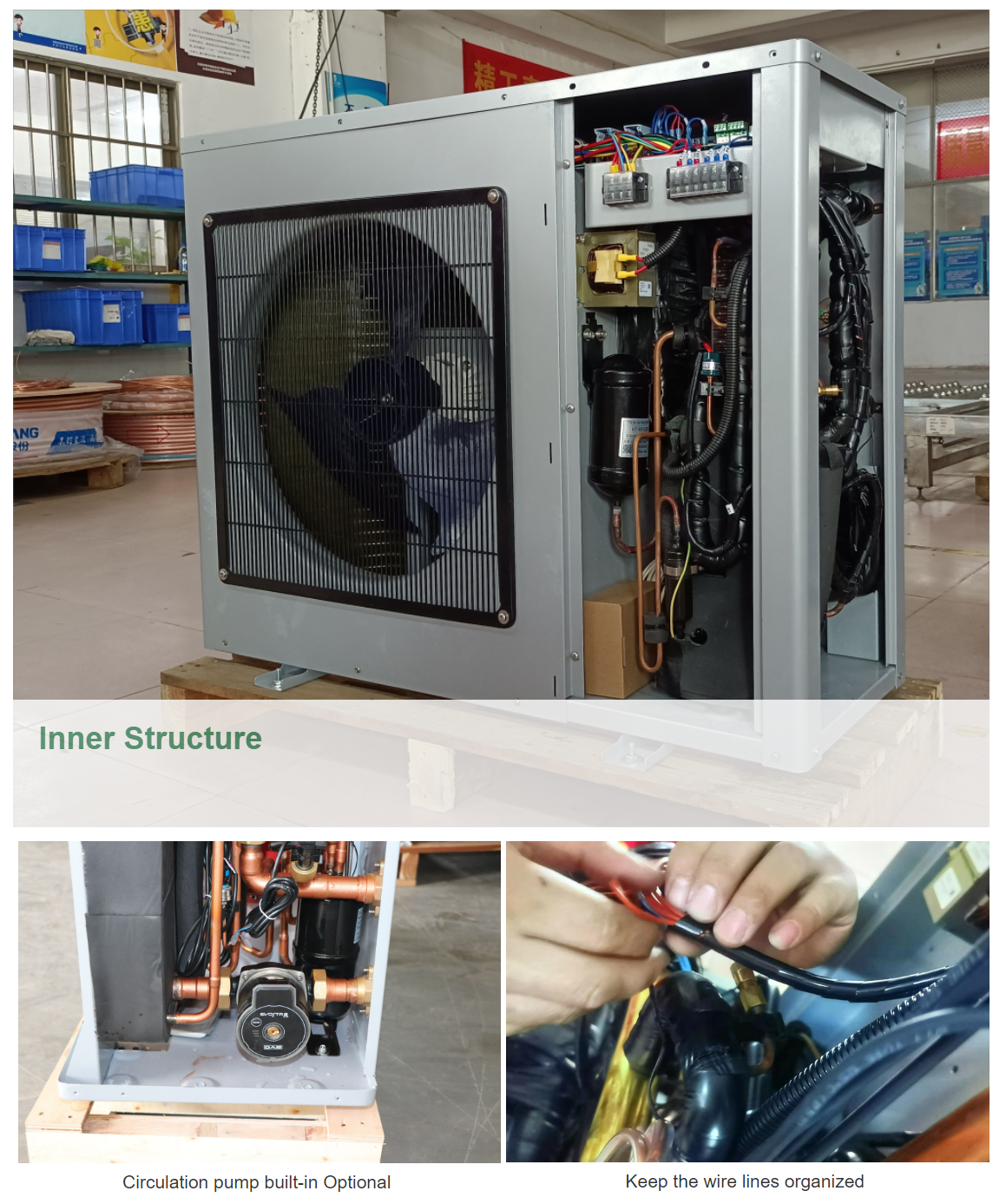

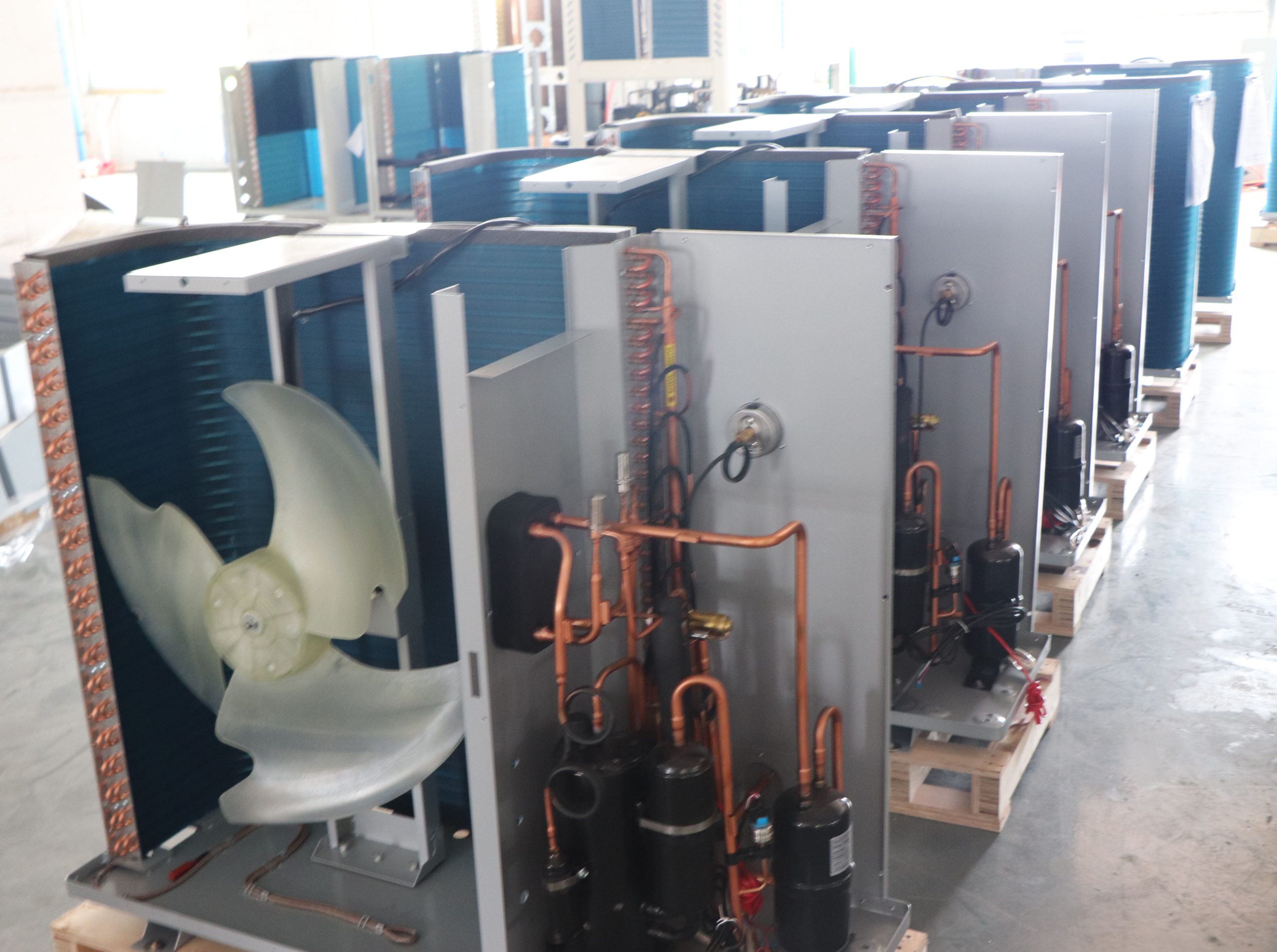

Detailed Image of -30D 12kw10 80Dg75 Hybrid Heating Radiator Heated Air Cooling DHW Warmepumpe R290 Monoblock DC Inverter Air Source Water Heater Pump Geyser
SG ready Certificates of -30D 12kw10 80Dg75 Hybrid Heating Radiator Heated Air Cooling DHW Warmepumpe R290 Monoblock DC Inverter Air Source Water Heater Pump Geyser

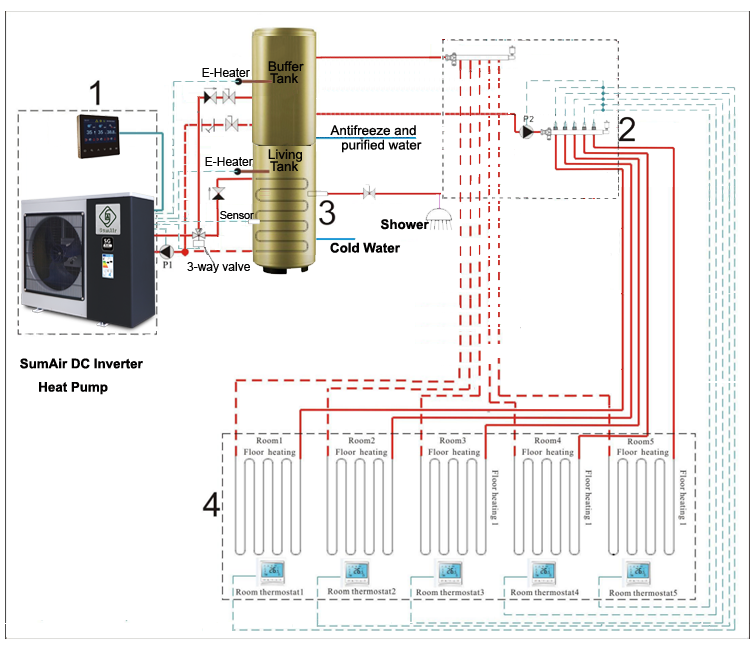

SG ready Control/Installing Logic

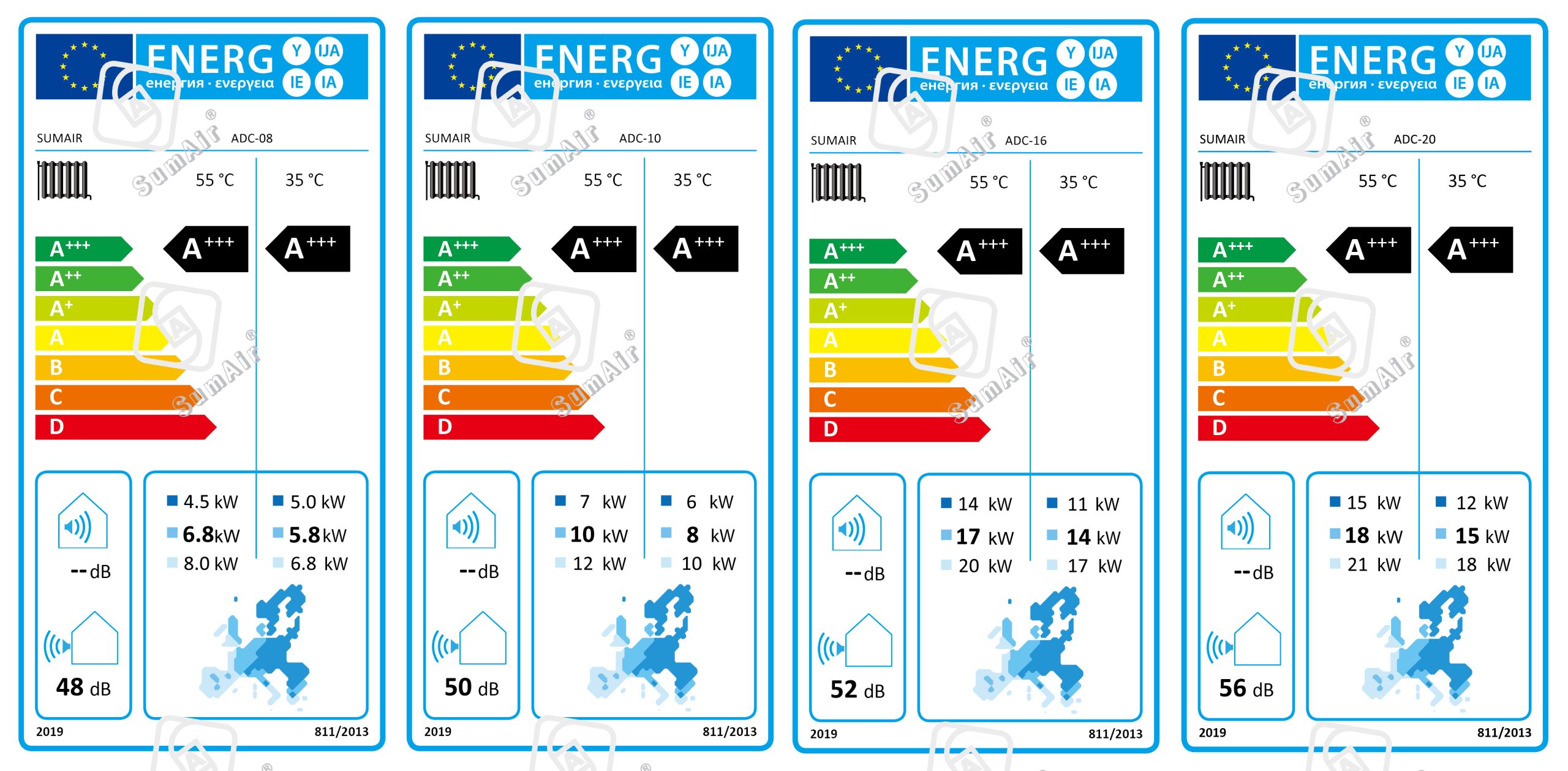

Erp Test Report & Energy Labels of R290 Heizung Warmwasser Pompe A Chaleur Monobloc EVI DC Inverter Air to Water HEATING PUMP Water Heater Boiler
Products in Line

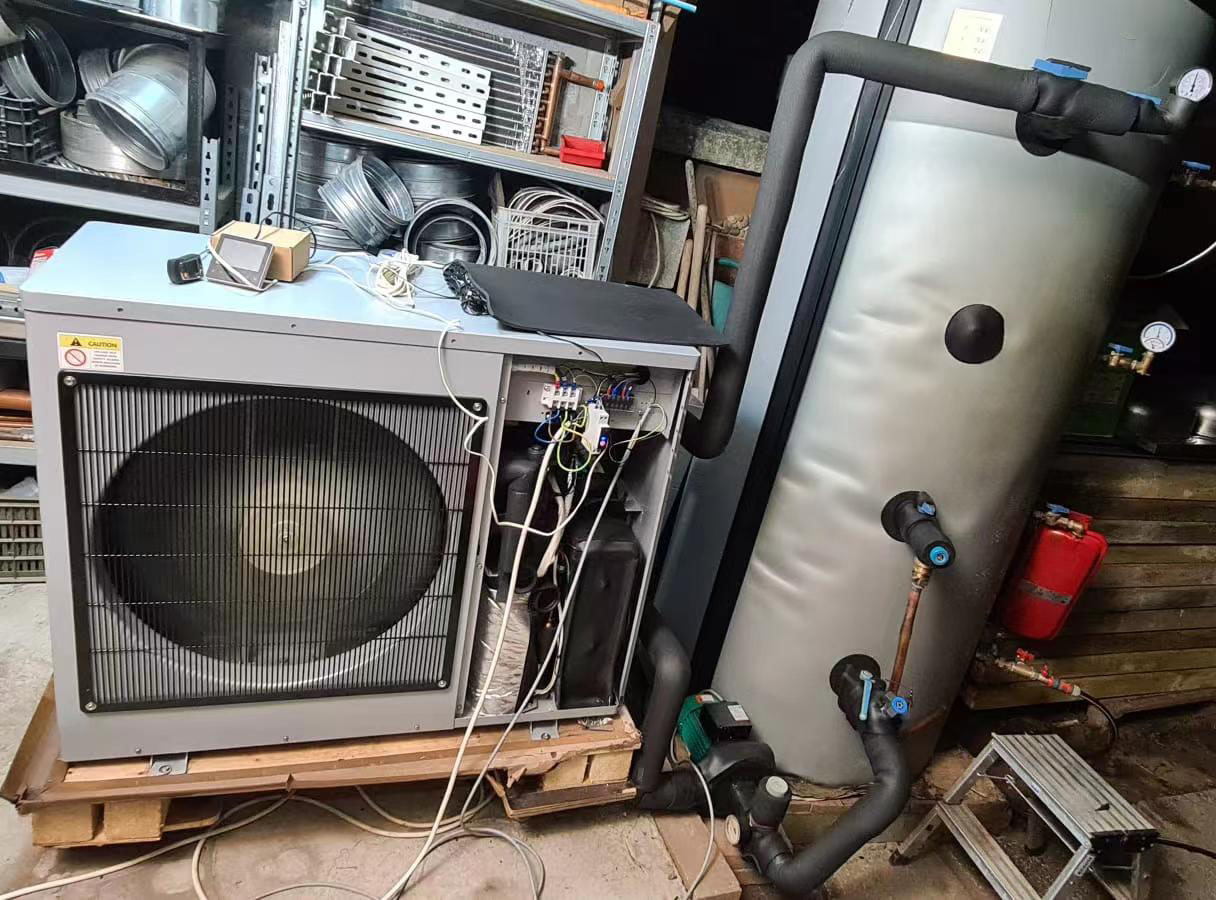

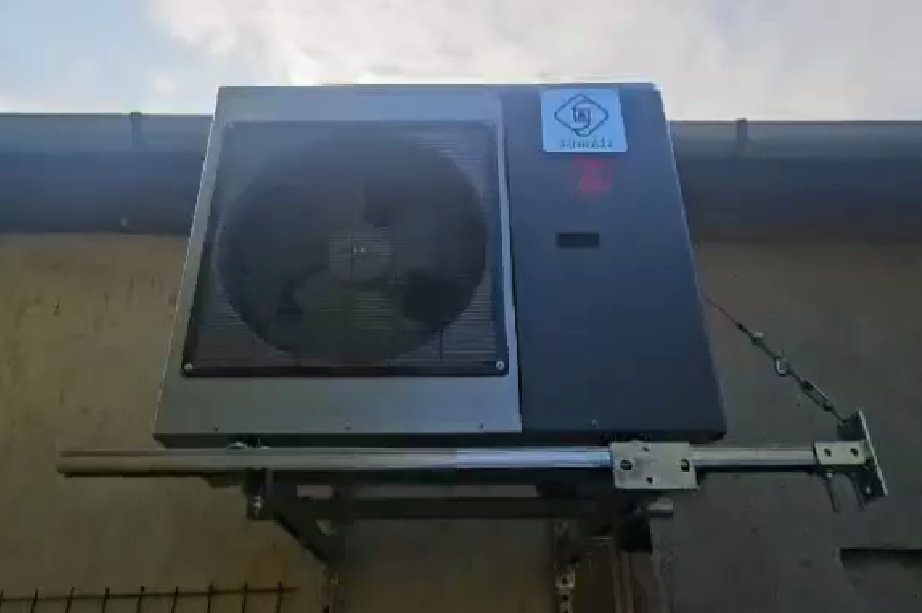

Applications & Install Reference
