200L Stainless Steel SUS304 maintain consistent temperature throughout the heat pump system house heating buffer tank
#ASWT-200LB
| Our Item no. | #ASWT-200LB |
| Water tank volum | 200L |
| Water tank maximum working temperature and pressure | 80℃/6BAR |
| Exchanger coil | 0 |
| Inner tank material & liner | SUS304 & 1.0mm /¢370mm |
| Color | Light/Frosted White |
| Housing material | Galvanized steel, white powder coating |
| Insulation material | Polyurethane foam,50mm |
| Water Pipe Size (mm) | 2 inch (2 inlets+2 outlets) |
| Size,exclude foot pad. (mm) | ¢520*1480 |
| Packing Size (mm) | 650*650*1660 |
| N.W./G.W. (kg) | 86/103 |
Quote Now
Features of heat pump system house heating buffer tank
01/Stable
After it is added, when the unit defrosts, the water at a certain temperature can be stored in the tank to meet the end circulation, completely avoiding the fluctuation of the indoor temperature when the host defrosts, and increasing the stability of the system
02/Buffer
The heat storage buffer effect reduces the frequent start and stop of the heat pump, and uses the low valley
electricity to store heat.
electricity to store heat.
03/Energy saving
The buffer tank increases the water capacity of the system and stores the heat source. Thereby reducing the number of start and stop of the host to achieve the purpose of saving power.
04/protection
Remove the gas in the system in time to protect the circulating pump and management.
05/Exhaust
If it is installed in the system, the gas in the system will continuously accumulate to the upper part of the buffer water tank is automatically discharged through the exhaust valve on the upper part of the buffer water tank, and no water is discharged during the exhaust process, and the exhaust effect is obvious, which protects the normal operation of the system.
06/Sewage The impurities in the pipeline are constantly circulating, because after passing through a vertical water tank, many impurities will accumulate at the bottom of the buffer tank. The sewage outlet of the buffer water tank is set at the bottom of the water tank and is equipped with a manual sewage valve, which is more convenient to clean.

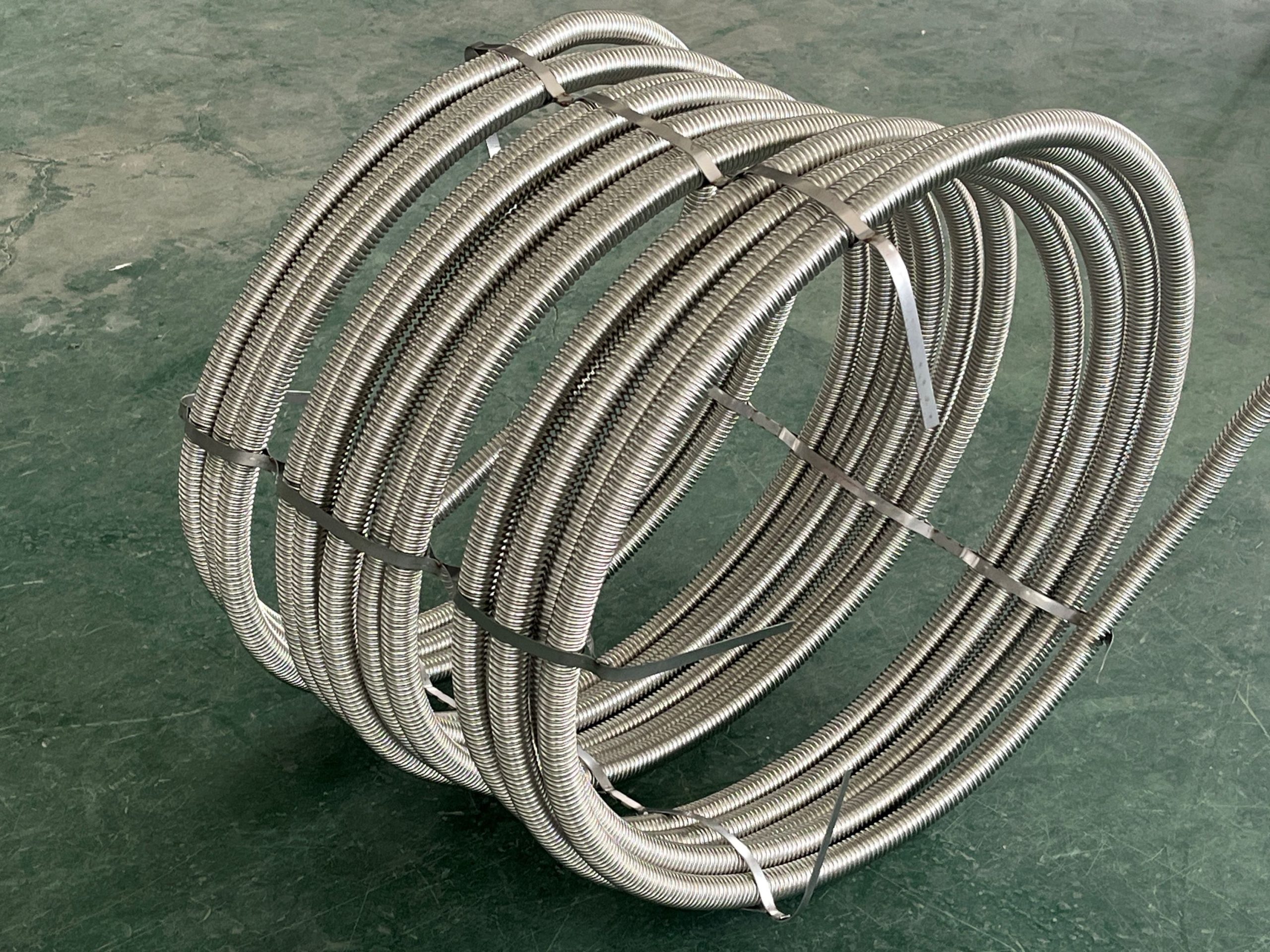

Deatiled image of heat pump system house heating buffer tank

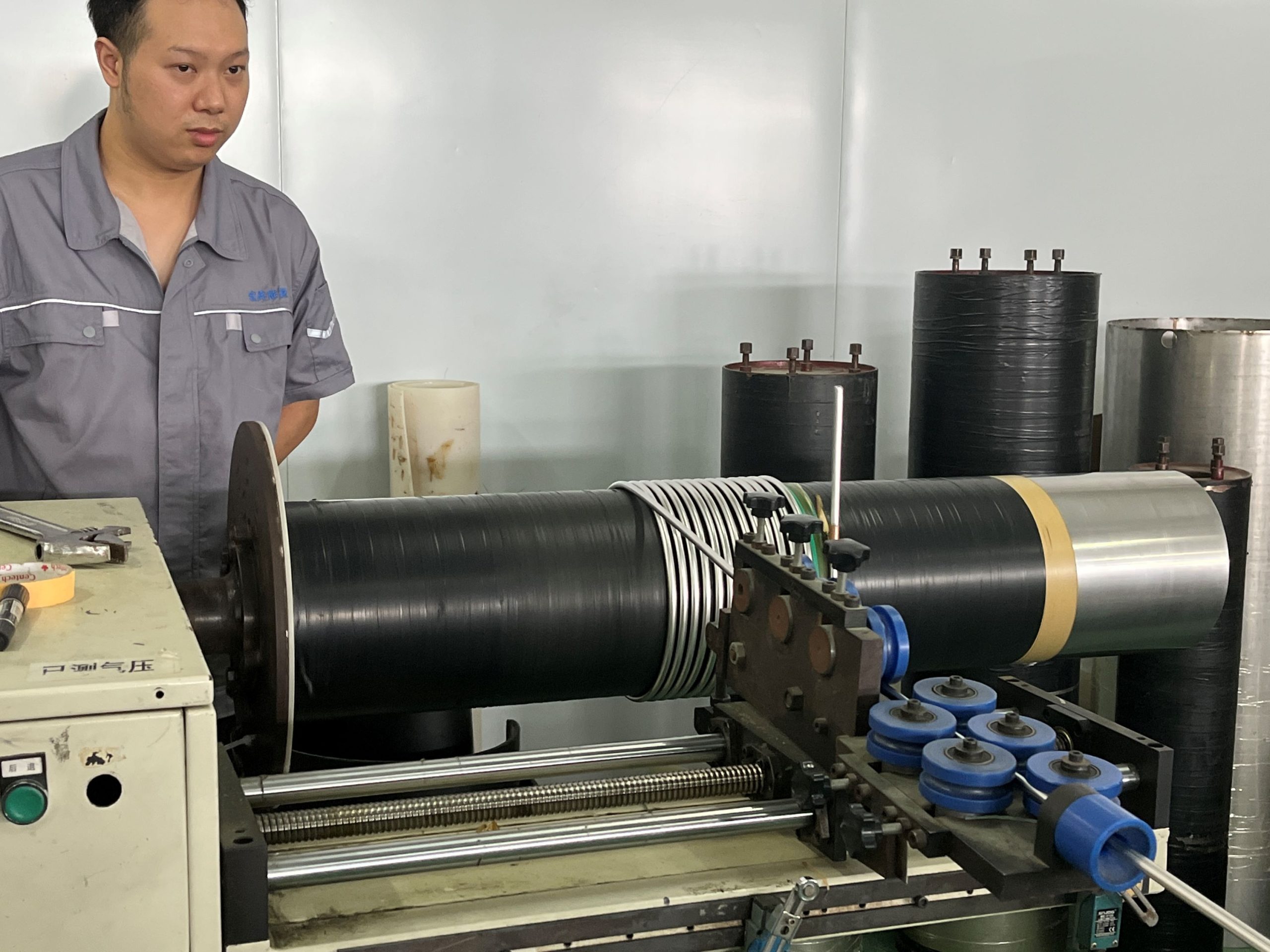

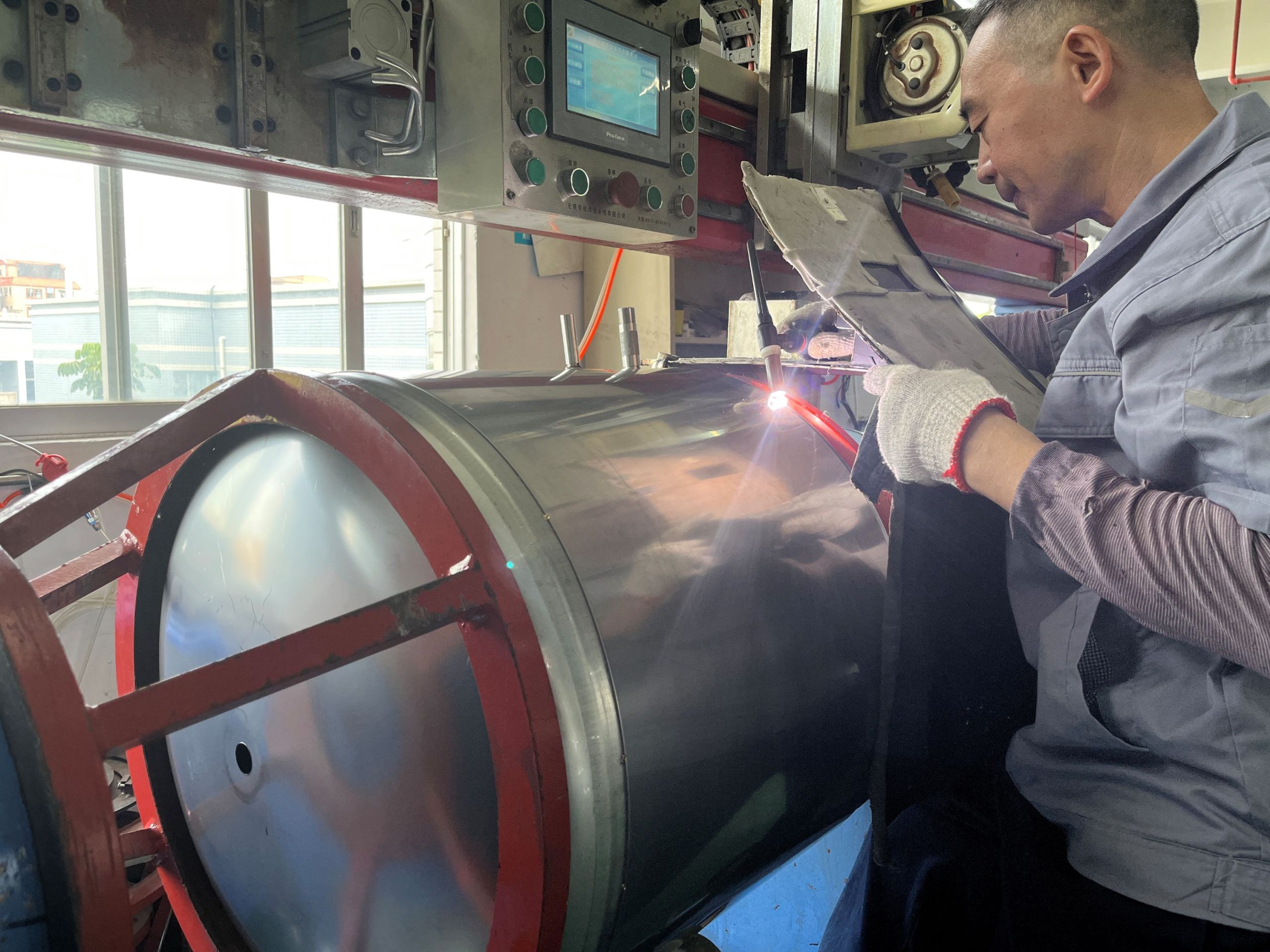

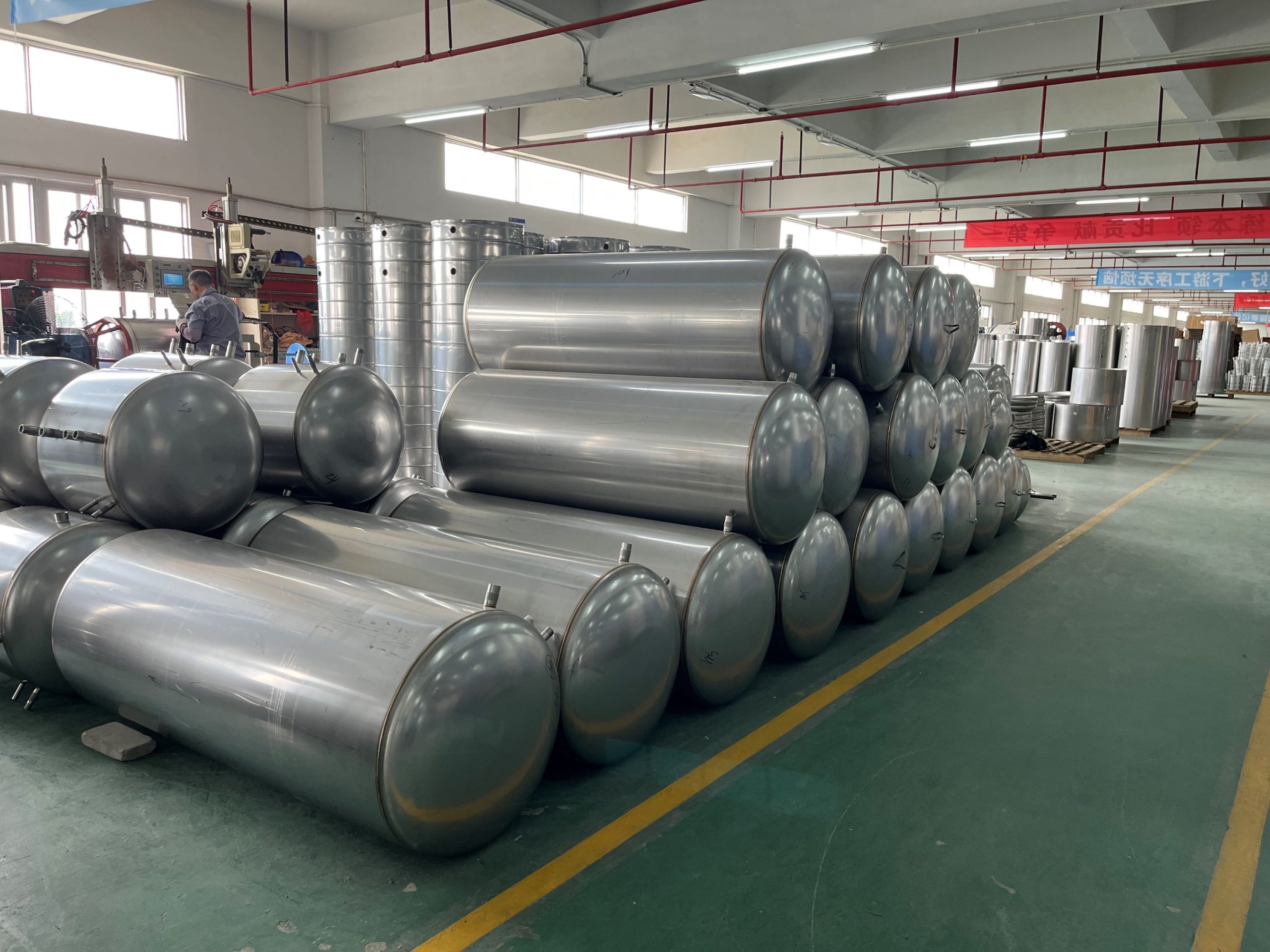

Production in line of heat pump system house heating buffer tank
Packages of heat pump system house heating buffer tank
